Simucube 3 Ultimate Wheel Base


Price:
Sale price 37 890 kr

Tax included Shipping calculated at checkout

Pre-order Now!
Shipping estimated to start in November

Description

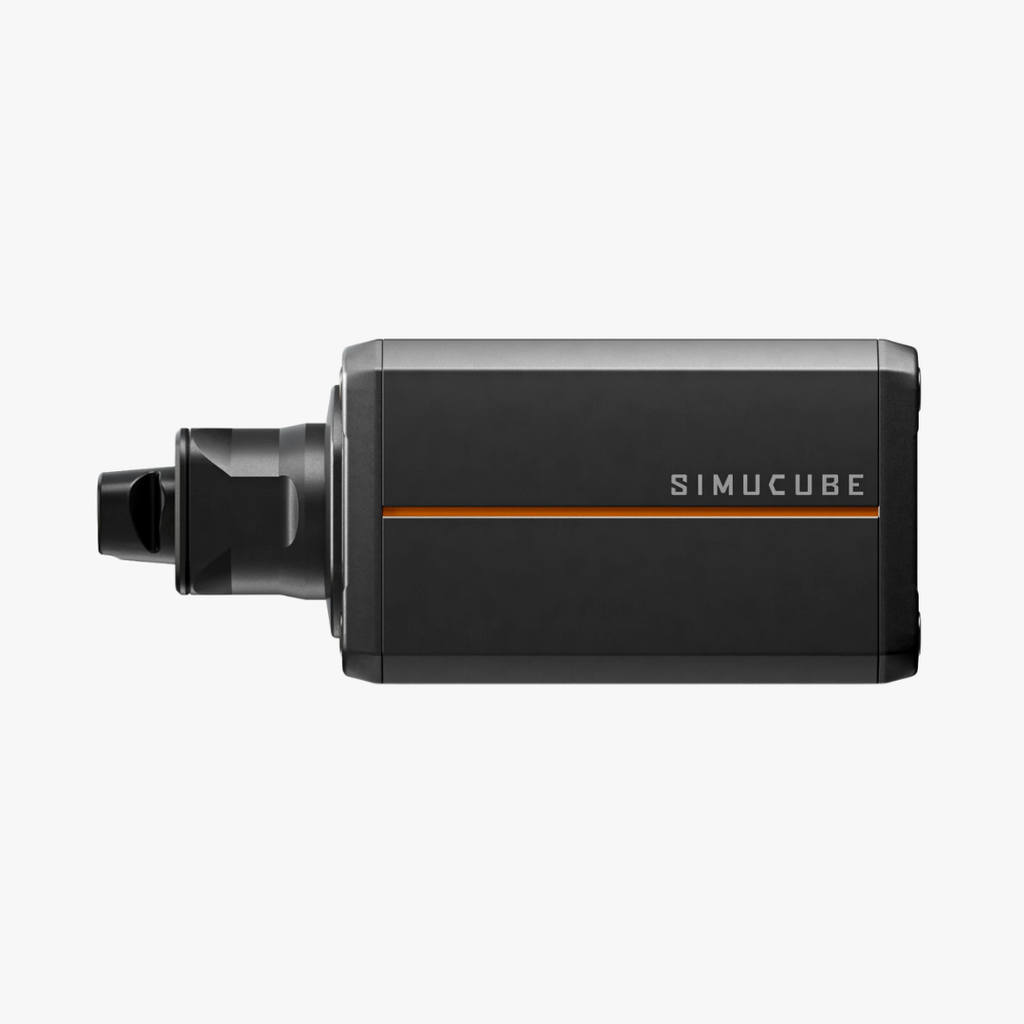

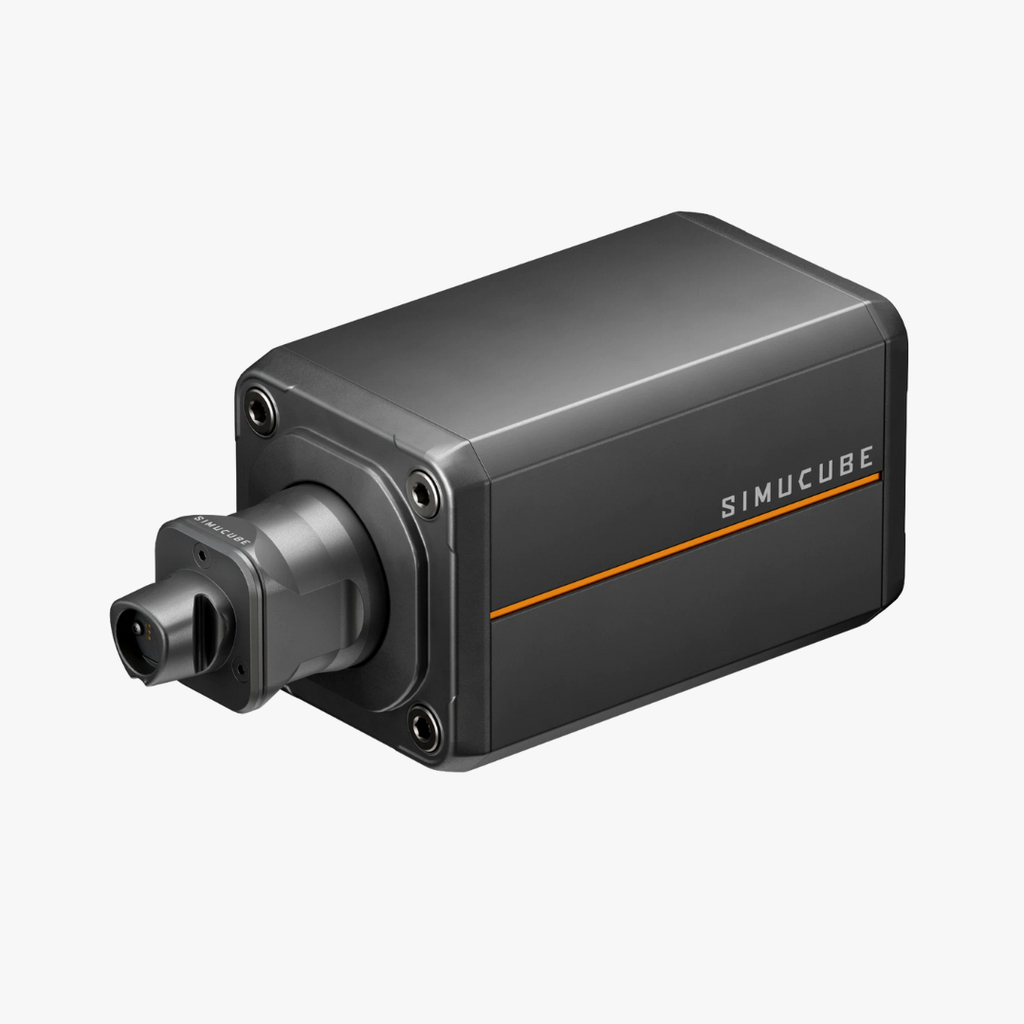

Simucube 3 Ultimate Wheel Base

Professional-grade IPM motor delivering 35 Nm of ultra-smooth, detailed, and precise direct drive feedback

Next-Level Precision and Power

  • Precise, smooth, and powerful direct drive force feedback (35 Nm)
  • Advanced IPM motor engineered exclusively for Simucube
  • Enhanced telemetry-based effects such as ABS, RPM, and road texture
  • Re-engineered control algorithm for maximum accuracy and silent performance
  • Frictionless setup with front and bottom mounting and versatile adapters

Uncompromising Professional Performance

  • Flagship-grade hardware designed for ultimate realism and responsiveness
  • Direct drive optimized IPM motor with maximum response speed and lower power draw
  • Raises performance standards with exceptional force clarity and detail
  • Engineered for endurance, precision, and long-term reliability

Product Parameters

  • Max Torque: 35 Nm
  • Motor: Direct Drive optimized IPM motor with maximum response speed
  • Angle Sensor: 23-bit absolute (8,000,000 steps)
  • Mounting: Front and Bottom
  • Warranty: 5 years

Technical Details

Dimensions

  • Wheel Base: 135 × 135 × 323 mm
  • Package Dimensions: 190 × 300 × 390 mm
  • Mounting Hole Pattern DIA: 135 mm and 78.4 mm
  • Flange Centering Feature DIA: 110 mm
  • Weight: 13 kg

Specifications

  • Motor Type: Direct Drive optimized IPM motor
  • Max Torque: 35 Nm
  • Angle Sensor: 23-bit absolute (8,000,000 steps)
  • Power Supply: 360 W (450 W peak)
  • Warranty: 5 years

What’s Included?

  • 1 × Simucube 3 Ultimate Wheel Base
  • 1 × Power Adapter
  • 1 × RJ45 Cable
  • 1 × AC Power Cord
  • 1 × Quick Start Guide
  • 1 × Control Box
  • Fasteners Kit:
    • 4 × M8 Washer
    • 4 × M6 Washer
    • 2 × M5 Washer
    • 4 × M8 × 35 Allen Head Bolt
    • 4 × M8 × 30 Allen Head Bolt
    • 2 × M5 × 30 Allen Head Bolt
    • 4 × M6 × 16 Allen Head Bolt
    • 2 × M5 T-slot Nut (8 mm slot)
  • Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub

Compatibility

  • Link Quick Release for Simucube 3
  • One Simucube Link Hub is required to operate. If you do not own a Simucube Link Hub, please choose the option “Including Simucube Link”.
  • For multiple Link Hub devices such as Simucube 3 and ActivePedals, please use the Teltonika Ethernet Switch.
